HERO 20

Primary tabs



By root_admin / On Mar.22.2013 / In COBALT BASED ROD / Width

properties:
COMPOSITION (wt%)
Co. Bal, Cr 32.0%, W 17.0%,
C 2.4%, Mo -, Ni <3.0%, Fe <3.2%,
Si <2.0%
HARDNESS HRC (HV)
50 - 59
DENSITY g/cm3 (lb/in3)
8.7 (0.316)
MELTING RANGE oF (oC)
2,287 - 2,367 (1,252 - 1,297)

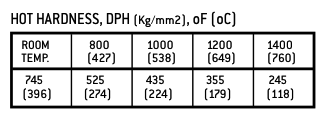

HOT HARDNESS, DPH (Kg/mm2), oF (oC)
CLICK HERE TO VIEW
technical:
DEPOSIT METHOD
Oxy-Acetylene & TIG (Gas Tungsten Arc)
FINISHING METHOD
Grinding
SPECIFICATIONS
AWS -
resistance rating:
HIGH TEMP. PROPERTIES
Good
HIGH TEMP. HARDNESS
Excellent
CORROSION RESIST.
Good
EROSION RESIST.
Good
ABRASION RESIST.
Excellent
GALLING RESIST.
Good
IMPACT RESIST.
Moderate
MECH. WEAR RESIST.
Good
CHEMICAL WEAR RESIST.
Good

HERO 20 is unbeatable in applications involving severe abrasion but low mechanical or thermal shock. It features a high volume fraction of carbide within the cobalt/chromium matrix, and is strengthened by tungsten, to defeat wear in applications such as pump sleeves and bearing sleeves, high pressure valve seats and wear pads.

APPLICATIONS

Petrochemical control valves, marine engine valve components, steel mill rolls, homogenizer valve components & centerless grinder work rests.

TECHNICAL

- Bonds well to all weldable steels and stainless

- Corrodes mainly by a pitting mechanism and not by general mass loss in seawater and chloride solutions. The typical electrode potential in sea water at room temperature is approximately -0.3 V (SCE).

AVAILABLE SIZES

Diameter

1/8” (3.2 & 3.4mm), 5/32” (4.0mm), 1/4” (6.4mm), 5/16” (8.0mm)

Length

36” Standard (custom lengths available upon request)

DOWNLOAD AND VIEW PRODUCT MSDS
